Multimode Variable Fiber Attenuator 50u KI2020

50u core MM variable optical attenuator
Best optical specifications
Easy to use, rugged & reliable

Overview

This hand-held fiber optic variable attenuator is a precision handheld instrument commonly used for testing 50u multimode mode fiber systems for optical system margin and linearity. Superior specifications, high productivity and remote-control capability also make this a genuine laboratory grade instrument. An additional typical application is as a passive adjustable attenuator pad in a transmission system.

Easy to use, accurate & productive instrument
Excellent linearity and absolute loss accuracy
Power handling to >+30 dBm / 1000 milliwatts
Broadband, flat λ response
Low minimum insertion loss
Excellent ORL & PMD characteristics
Supplied with SC, ST, LC interchangeable connectors
Remote control (LabWindows) software
Set attenuation is unaffected by power on/off status
Very long battery life

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

ILAC/NATA ISO/IEC 17025 Traceable Optical Calibration

Internationally recognised traceable optical calibration to ISO/IEC 17025

Genuine 3 year calibration validity

Genuine 3 Year optical power meter re-calibration validity

Runs on Alkaline Batteries

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

Test tone with multi-fiber ID Feature

Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.

Real-time reporting software

Excel-based instrument connectivity for comprehensive reporting (against standards) and real-time data logging.

USB Flash Drive data export with data assurance

High capacity internal memory, easy & secure text export, with Excel-based report generation software included.

Specifications

KI2020-VE specifications

Fiber type	50 /125 µm

Range	3.0 ~ 60.0 dB

Resolution	0.01 dB

Linearity / Repeatability	0.2 dB

Absolute uncertainty	0.5 dB

Power capability	+30 dBm

Optical return loss (ORL)	60 dB

Polarization dependent loss (PDL)	< 0.1 dB

Thermal stability over temperature	±0.02 dB

Operating wavelength range	750 ~ 1800 nm

Nominal Calibration wavelengths	850, 1300 nm

Wavelength dependence (850 ~ 1300 nm)	< ±0.5 dB up to 20 dB

Country of Origin	Australia

Shipping Weight	1500 g

General Variable Optical Attenuator & Power Meter KI 2000 Series specifications

Interface	USB-C

Power	Battery / external power via USB-C. Jumper selectable charging

Battery types	2x AA (LR6) alkaline / 2x AA NiMH AA (rechargeable via USB-C)

Battery life	Up to 1000 hours

Auto off	User selectable

OPM resolution	0.01 dB

OPM calibration accuracy	±1 % (0.06 dB)

OPM tone detection	150 ~ 9999 Hz ± 1 %

OPM polarization sensitivity	< 0.05 dB (typical)

OPM memory	1000 (4-λ tests) / unlimited on USB flash drive

Operating / storage temperature	-15 to 55 °C / -25 to 70 °C

Relative humidity	0 ~ 95 %

Case	Polycarbonate, 1-meter drop tested, with captive caps

IP rating	IP52

Size	124 x 81 x 25 mm

Unit weight	0.45 kg

Calibration validity (ISO/IEC 17025)	3 years

Warranty	3 years

Documentation & Support

Sales literature

Related application notes

More application notes...

General support

Applications

Recommended for these applications

For Multimode fiber

Fiber optic test equipment for in-building LAN, ethernet, campus, industrial & education applications.

High-power systems

Fiber optic test equipment for amplified or analogue transmission systems up to >+30 dBm.

In the box

ST Hybrid Connector Adapter OPT040

ST-SC. Tough metal body, precision ceramic sleeve

SC/SC Through Connector OPT046

SC-SC, Tough metal body, precision ceramic sleeve

LC Hybrid Connector Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve. Also fits F3000 connector.

Wrist Strap / Lanyard

Handy lanyard & matching instrument attachment point

Quick Reference Guide QRG

Handy quick reference guide, some in multiple languages

Instrument User Manual

Comprehensive user manual, in well written English

Quality Assurance Certificate

Traceable Calibration Certificate ILAC/NATA Compliant

IEC/ISO 17025 compliant calibration certificate

Padded Canvas Carry Pouch OPT149

Soft pouch for two KI2000 series instruments. With carry straps and compartments for accessories storage.

Optional accessories

FC Hybrid Connector Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

MU Hybrid Connector Adapter OPT080

MU-SC

LC / F3000 Hybrid Connector Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

E2000 Hybrid Connector Adapter OPT060

E2000-SC, ceramic sleeve

LSA-DIN47256 AVIM Hybrid Connector Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Semi-rigid canvas test kit case for two KI2000 or KI7000 series instruments, and three KI9000 series instruments. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

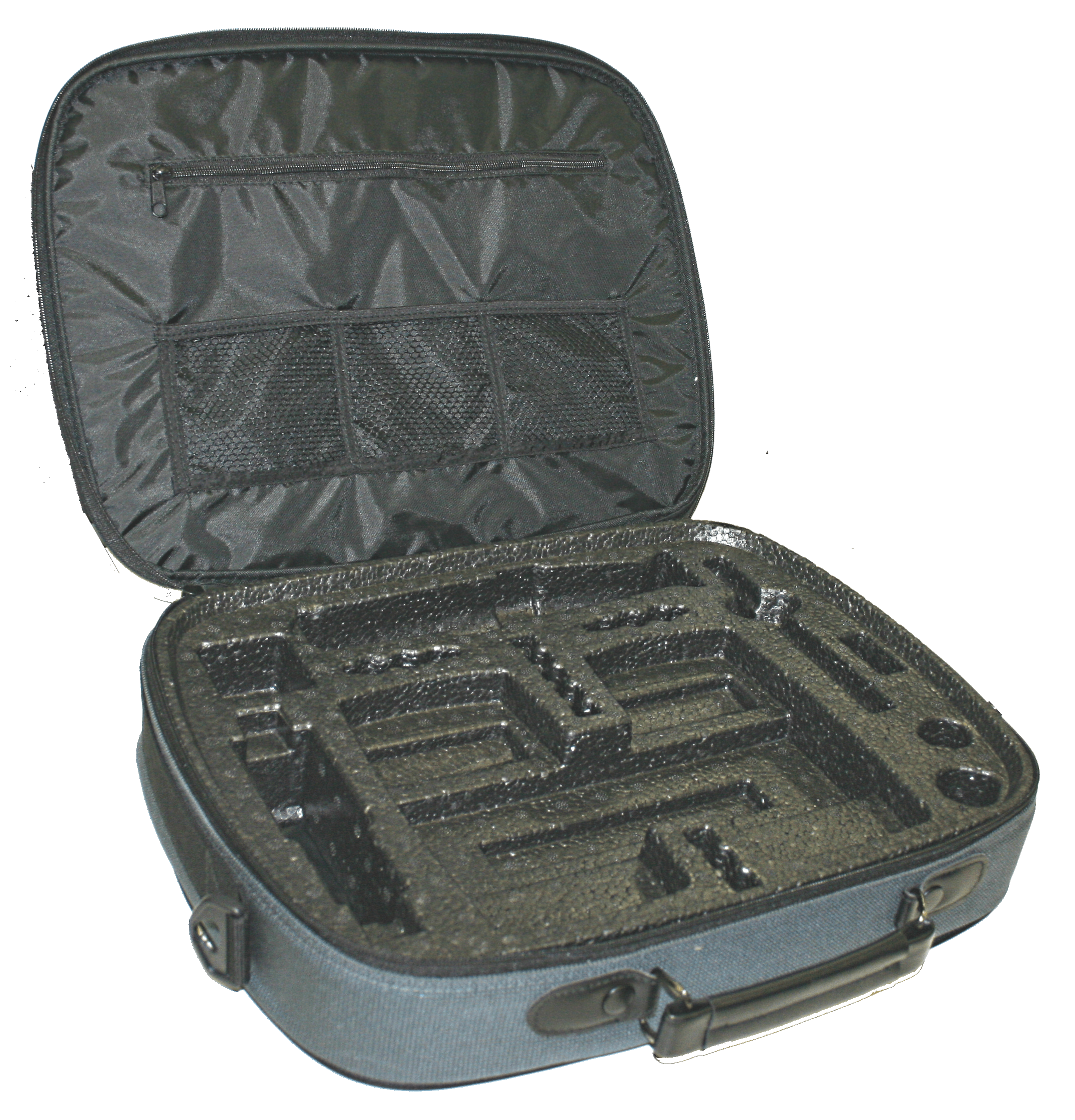

Carry Case-only for Test Kits OPT154B-CASE

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.
