Overview

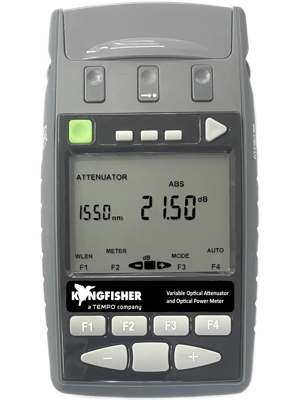

This hand-held Fiber Optic Variable Attenuator is a precision handheld instrument commonly used for testing single mode fiber systems for optical system margin and linearity. Superior specifications, high productivity and remote-control capability also make this a genuine laboratory grade instrument. An additional typical application is as a passive adjustable attenuator pad in a transmission system.

SM fiber, PC connector
Additional full-function optical power meter
Easy to use, accurate & productive
Excellent linearity & absolute accuracy
ISO/IEC 17025 traceable calibration
Power handling to >+30 dBm / 1 Watt
Broadband, flat λ response
Low minimum insertion loss
Excellent ORL & PMD characteristics
SC, LC interchangeable connectors
Remote control (Labwindows) software
Modbus remote control protocol
Attenuation not affected by power on/off
Very long battery life

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

ILAC/NATA ISO/IEC 17025 Traceable Optical Calibration

Internationally recognised traceable optical calibration to ISO/IEC 17025

Genuine 3 year calibration validity

Genuine 3 Year optical power meter re-calibration validity

Runs on Alkaline Batteries

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

Test tone with multi-fiber ID Feature

Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.

Real-time reporting software

Excel-based instrument connectivity for comprehensive reporting (against standards) and real-time data logging.

USB Flash Drive data export with data assurance

High capacity internal memory, easy & secure text export, with Excel-based report generation software included.

Specifications

KI2010-INGAAS specifications

Fiber type	SMF-28

Range	2.0 ~ 60.0 dB

Resolution	0.01 dB

Linearity / repeatability	0.03 dB

Absolute uncertainty	0.3 dB

Power capability	+30 dBm

Optical return loss (ORL)	60 dB

Polarization dependent loss (PDL)	< 0.1 dB

Thermal stability over temperature	±0.02 dB

Polarization mode dispersion (PMD)	< 1 ps

Operating wavelength range	1200 ~ 1650 nm

Nominal calibration wavelengths	1310, 1550 nm

Wavelength dependence (1300 ~ 1625 nm)	< ±0.25 dB up to 15 dB, < ±0.5 dB up to 20 dB

Wavelength dependence over DWDM4 S/C/L band (1490 ~ 1610 nm)	< ±0.2 dB up to 15 dB, < ±0.3 dB up to 20 dB

OPM detector type	InGaAs

OPM response wavelength	600 ~ 1700 nm

OPM calibration wavelengths	780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm

OPM power range	+10 ~ -60 dBm (for 780 ~ 980 nm) / +10 ~ -70 dBm (for 1270 ~ 1650 nm)

OPM mid-range linearity	0.04 dB (typical)

OPM ID tone detection sensitivity	Up to -50 dBm

OPM λ sensitivity, ± 30 nm. Selected λ	0.2 dB (typical)

Country of Origin	Australia

Shipping Weight	1500 g

General Variable Optical Attenuator & Power Meter KI 2000 Series specifications

Interface	USB-C

Power	Battery / external power via USB-C. Jumper selectable charging

Battery types	2x AA (LR6) alkaline / 2x AA NiMH AA (rechargeable via USB-C)

Battery life	Up to 1000 hours

Auto off	User selectable

OPM resolution	0.01 dB

OPM calibration accuracy	±1 % (0.06 dB)

OPM tone detection	150 ~ 9999 Hz ± 1 %

OPM polarization sensitivity	< 0.05 dB (typical)

OPM memory	1000 (4-λ tests) / unlimited on USB flash drive

Operating / storage temperature	-15 to 55 °C / -25 to 70 °C

Relative humidity	0 ~ 95 %

Case	Polycarbonate, 1-meter drop tested, with captive caps

IP rating	IP52

Size	124 x 81 x 25 mm

Unit weight	0.45 kg

Calibration validity (ISO/IEC 17025)	3 years

Warranty	3 years

Documentation & Support

Sales literature

Related application notes

More application notes...

General support

Applications

Recommended for these applications

Single mode fiber

Fiber Optic Test equipment for high bandwidth or long distance telecommunications testing.

CWDM / DWDM systems

FO Testers for DWDM, CWDM & SWDM4 systems. Solutions for wavelength selective optical loss testing with WDM calibrations and features, and a broadband variable optical attenuator.

High-power systems

Fiber optic test equipment for amplified or analogue transmission systems up to >+30 dBm.

In the box

SC/SC Through Connector OPT046

SC-SC, Tough metal body, precision ceramic sleeve

LC Hybrid Connector Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve

Wrist Strap / Lanyard

Handy lanyard & matching instrument attachment point

Quick Reference Guide QRG

Handy quick reference guide, some in multiple languages

Instrument User Manual

Comprehensive user manual, in well written English

Quality Assurance Certificate

Traceable Calibration Certificate ILAC/NATA Compliant

IEC/ISO 17025 compliant calibration certificate

Padded Canvas Carry Pouch OPT149

Soft pouch for two KI2000 series instruments. With carry straps and compartments for accessories storage.

Optional accessories

FC Hybrid Connector Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

MU Hybrid Connector Adapter OPT080

MU-SC

LC / F3000 Hybrid Connector Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

E2000 Hybrid Connector Adapter OPT060

E2000-SC, ceramic sleeve

LSA-DIN47256 AVIM Hybrid Connector Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Semi-rigid canvas test kit case for two KI2000 or KI7000 series instruments, and three KI9000 series instruments. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Carry Case-only for Test Kits OPT154B-CASE

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.
