Overview

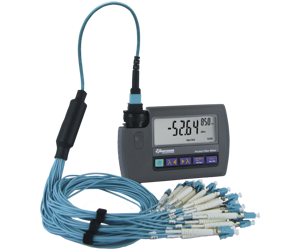

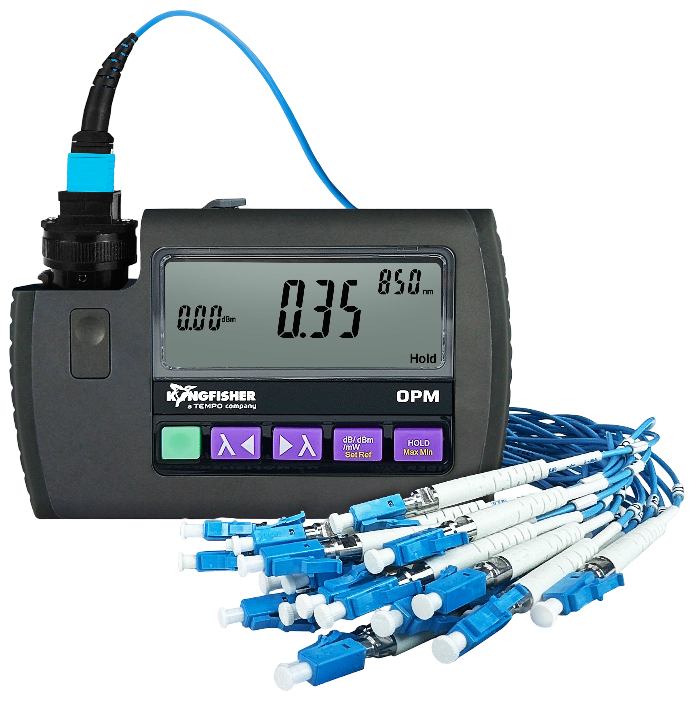

This inexpensive MMC or MPO Power Meter is a simple and reliable optical power meter with a 7 x 3 mm Ge detector for testing power and loss on multi-fiber ribbon cable up to +10 dBm. Ideal for MMC or MPO 12 - 72 fiber up to 16 fibers wide, SM & MM, and LC/ SC etc fiber optic systems. It provides high accuracy and simplicity of use. For all current / proposed versions of fiber optic Ethernet and InfiniBand including advanced AI processor nodes.

12 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
Accommodates MMC / MPO 12 x n, 16 x n fiber ribbon connectors
Small size, easy to use, rugged & reliable
dBm / dB / linear, 0.01 dB resolution
Display hold & max/min recording
Tone detector with Multi-Fiber ID
Easy to use TamperLock mode
Interchangeable optical connectors, XL series
Full QA reports

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

VE visual enhanced InGaAs detector

3 x better accuracy in the 850 nm band

Test tone with multi-fiber ID

Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.

Runs on alkaline batteries

High-power optical power meter

High power detector options with superior performance

ILAC/NATA ISO/IEC 17025 traceable optical calibration

Internationally recognised traceable optical calibration to ISO/IEC 17025

Genuine 3 year calibration validity

Genuine 3 Year optical power meter re-calibration validity

SC / LC duplex support

Use our universal interchangeable connector options for duplex testing.

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

TamperLock mode

Lock down user controls and configuration to reduce the risk of test failure.

Made in Australia

Designed, made & calibrated in Melbourne, Australia.

Specifications

KI9600XL-GE7 specifications

Detector type	Ge (7 x 3 mm)

Response wavelength	600 ~ 1650 nm

Calibration wavelengths	660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm

Power range	+10 ~ -30 dBm (for 660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm)

Mid-range linearity	0.06 dB (typical)

Response uniformity across detector	2 % (0.09 dB)

ID tone detection sensitivity	-35 dBm

Country of Origin	Australia

Shipping Weight	500 g

General Pocket Power Meter KI 9600A Series specifications

Calibration accuracy	±2 % (0.09 dB)

Calibration validity	3 Years (ISO/IEC 17025)

λ sensitivity, ± 30 nm. Selected λ	0.2 dB (typical for other detectors) / 0.3 dB (typical for VE detector)

Resolution	0.01 dB

Polarization sensitivity	< 0.05 dB (typical)

Tone detection	200 ~ 2500 Hz ± 2 %

Power	2 x AAA (LR-03) Alkaline

Battery life	300 Hours

Auto-off	Selectable

Size	124 x 81 x 25 mm

Unit weight	0.15 kg

Shipping weight	0.5 kg

Operating / storage temperatures	-15 to 55 / -25 to 70 °C

Relative humidity	0 ~ 95 %

Warranty	3 Years

IP Rating	IP52
