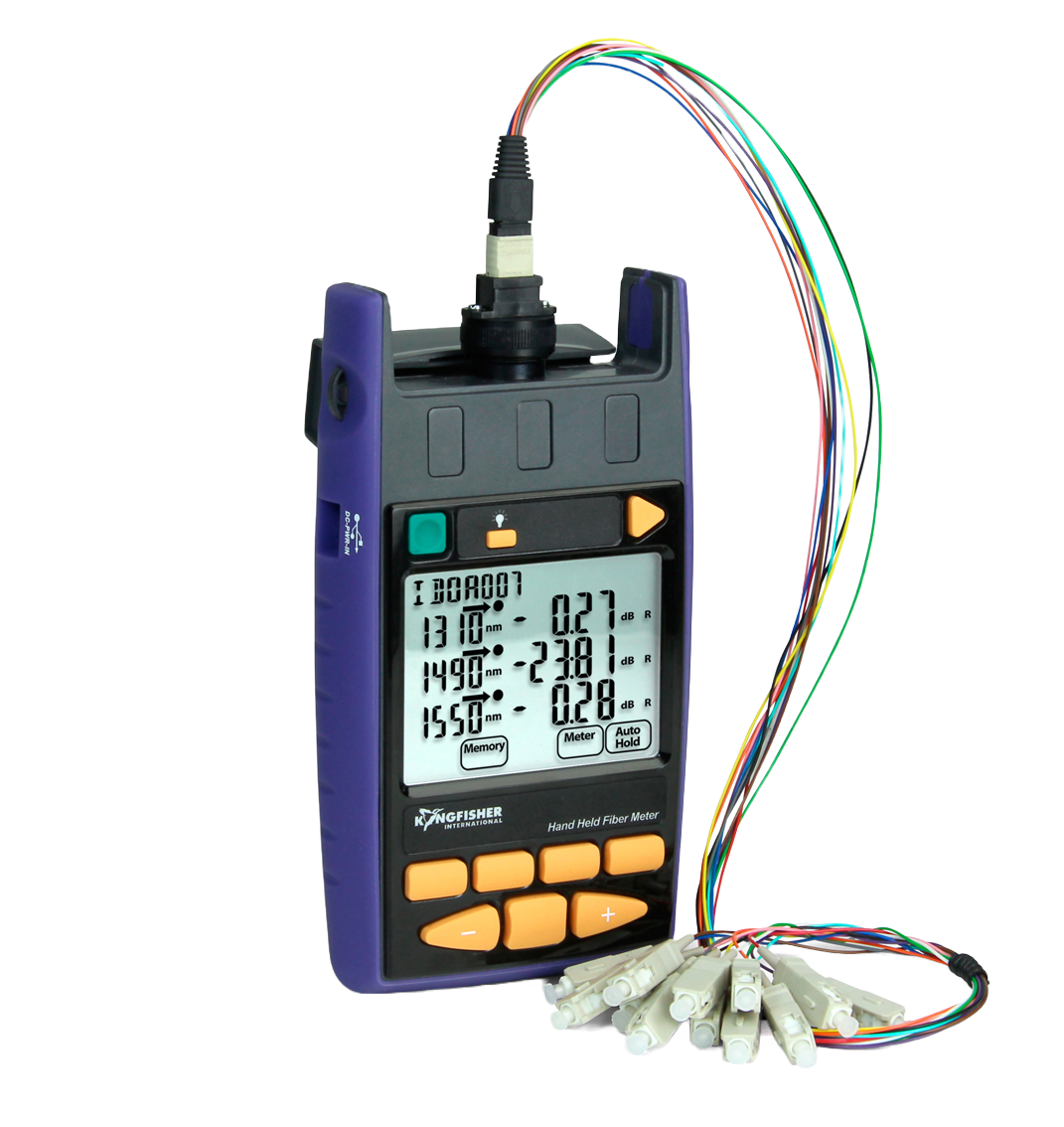

An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fiber optic systems up to +15 dBm, with a 7 x 3 mm Ge detector, Ideal for testing: all multi-fiber ribbon cable such as MMC or MPO styles 16 -32 fiber, 12 to 72 fiber, SM & MM, and other connector styles and LC/ SC etc fiber optic systems. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility. For all current / proposed versions of fiber optic Ethernet and InfiniBand including advanced AI processor nodes.
- Easy to use, rugged & versatile
- Specifically optimised for MMC / MPO 12 x n, 16 x n fiber ribbon connectors
- 32 calibration λ, 1% accuracy ISO/IEC 17025 traceable
- Improved high power accuracy
- Autotest with up to 3 λ displayed
- Long battery life & micro USB external power
- Large back-lit LCD, sunlight readable
- Interchangeable optical connectors
- Large memory with text naming & time stamp
- KITS™ reporting software with data security
- One button memory dump to USB Flash Drive
- MultiFiber ID tone detection
- Full QA & linearity test report
)
)
)
)
)
)
)
)
)
