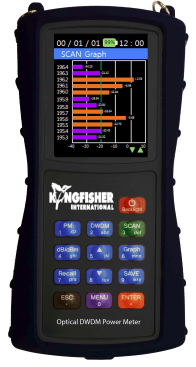

DWDM Channel Power Meter KI 6503

λ selective DWDM power meter
Scans all channels
Compact, rugged and inexpensive

Overview

An easy and economical handheld DWDM power meter for testing multi-λ single mode fiber optic systems, using an ITU-CWDM compliant template.

It scans and stores the absolute power or loss of all 48 DWDM λ in 3 seconds, with results viewed in graphical or numerical form,

Compact, rugged & light weight
Easy to use
Fast scan of 48 calibrated λ
Large, sunlight readable, backlit display
Simultaneous 9 λ loss display
Tabular and graphical display modes
Internal memory for 300 48-λ tests
Programmable auto shut off

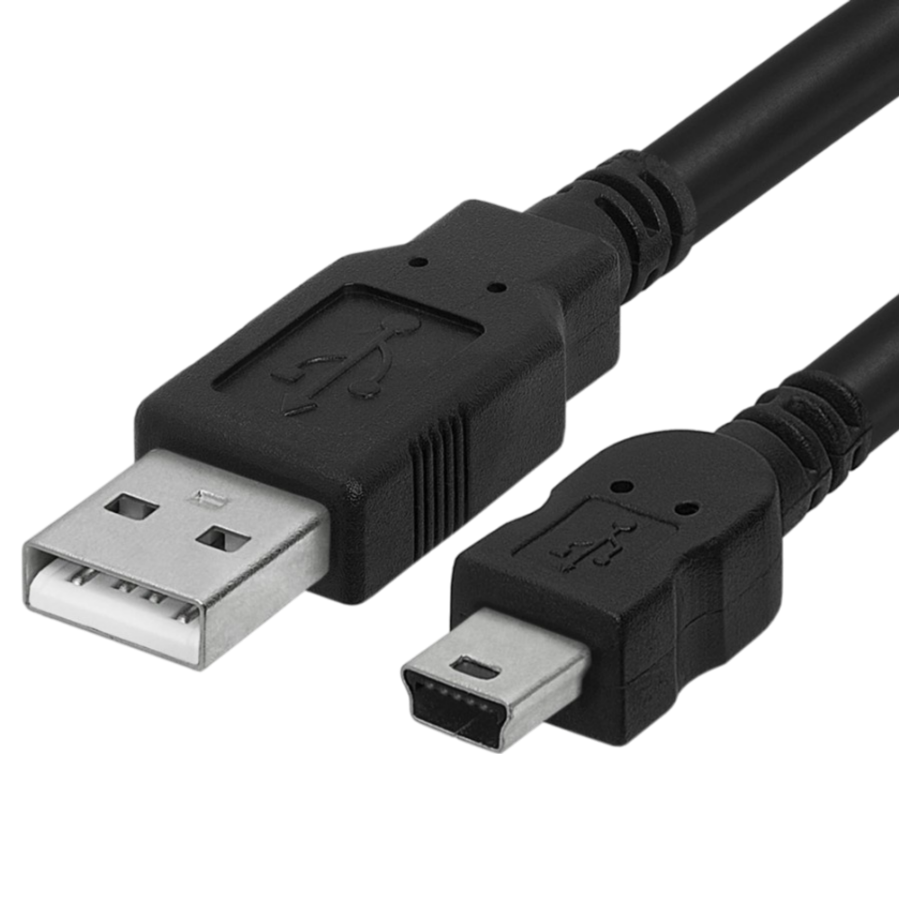

Power / data transfer via mini USB port
1 year warranty

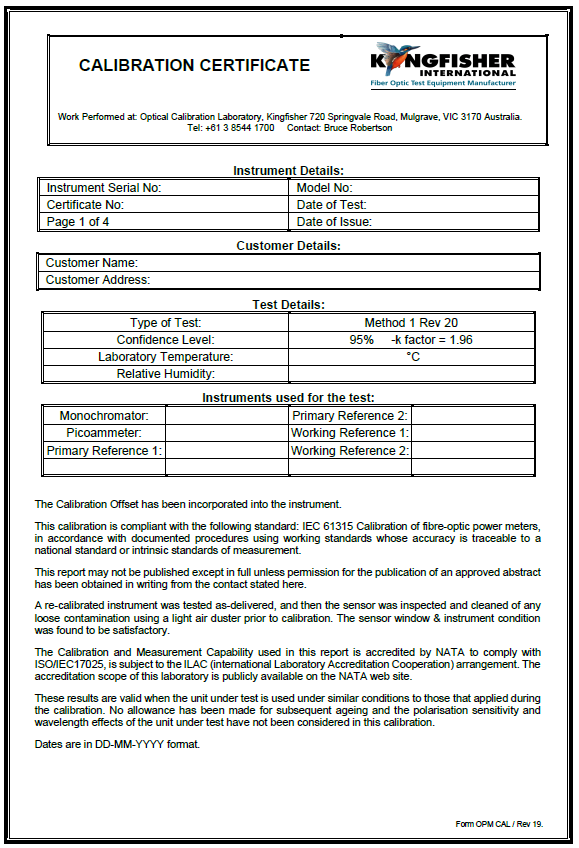

Full QA report

Key Features

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

Specifications

KI6503 specifications

Country of Origin	South Korea

Shipping Weight	750 g

General DWDM Channel Power Meter KI 6503 specifications

Calibrated λ	1526.43 ~ 1563.86 nm

Number of channels	48

Channel spacing	0.8 nm

Measurement speed	3 sec (for all channels)

Power range	40 ~ 10 dBm

Accuracy	±1.0 @ -30 dBm

Damaged level	+27 (composition of 48 λ)

Fiber type	Single Mode

Optical connector type	SC/PC

Display	2.8” Colour LCD with backlight

Show result	dBm, dB

Resolution	0.01 dB

Memory	300 records of 48-λ tests

Data software	Connect via mini-USB

Battery	Built-in Li-Polymer Battery (3.7V, 1800mAH) rechargeable via USB

Battery charging time	180 min (max)

Battery life	7 hours

Auto off	Programmable (5 ~ 600 min)

Operate / storage temperature	-10 ~ 50 °C / -20 ~ 55 °C

Relative humidity	90% @ 0 ~ 40°C

Unit size	77.9 mm x 154.9 mm x 33.5 mm

Unit weight	0.33 kg

Shipping weight	0.75 kg

Calibration validity	3 years

Warranty	1 year

Documentation & Support

Sales literature

Related application notes

More application notes...

Manuals & software

General support

Applications

Recommended for these applications

CWDM / DWDM systems

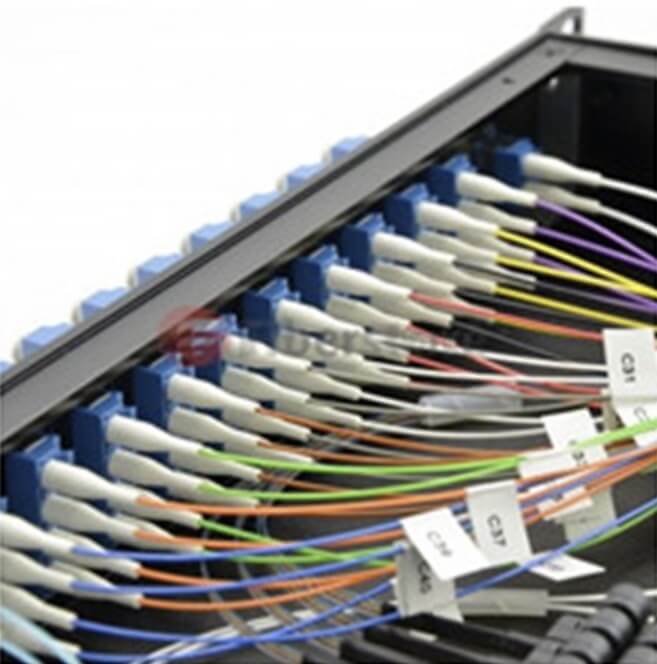

FO Testers for DWDM, CWDM & SWDM4 systems. Solutions for wavelength selective optical loss testing with WDM calibrations and features, and a broadband variable optical attenuator.
