Video Inspection Scope Adapter Series

Adaptors for Kingfisher KI 6680 & Autoget Wi-Fi video microscopes

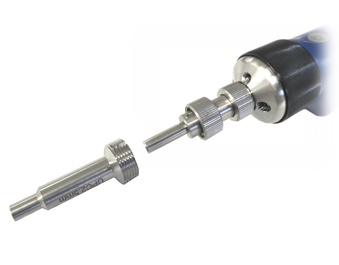

  • For Fiber Video Inspection Probes, KI6680 and Dimension AutoGet Wi-Fi.
  • Instrument supplied with 5 adapters in a handy dustproof case, which also fits 3 more adapters.
  • The 5 suppled adapters are for male & bulkhead-assembled female: SC/PC, LC/PC, FC/PC. Can also inspect the male tip on other connectors with 2.5 mm/PC ferrules, or 1.25 mm/PC ferrules.
  • Works with duplex connectors.

More interchangeable connector styles

1.25 mm APC Male / Video Scope Adapter OPT630A

For LC/APC male connectors and other 1.25mm ferrule & APC polish tip

LC APC Female / Video Probe Adapter OPT632A

For inside an LC bulkhead female adapter, to inspect an LC/APC polish tip.

2.5 mm APC Male / Video Scope Adapter OPT631A

For SC/APC, FC/APC, E2000/APC, ST/APC, LSA/APC male connectors, and other 2.5 mm ferrule & APC polish tip

SC APC Female / Video Scope Adapter OPT633A

For inside an SC bulkhead female adapter to inspect an SC/APC polish tip

FC APC Female / Video Scope Adapter OPT634A

For inside an FC bulkhead female adapter, to inspect an FC/APC polish tip

MPO / Video Scope Adapter OPT635

For MPO & MPO-APC for KI6680. To inspect both a male connector tip, and to fit inside a female bulkhead adapter.

MPO / Video Scope Adapter OPT636

For MPO & MPO-APC connectors and Dimension AutoGet Wi-Fi, to do auto pass/fail analysis. To inspect both a male connector tip, and to fit inside a female bulkhead adapter.

Optitap / Video Scope Adapter OPT639

For Optitap with SC/APC connector

E2000 Male / Video Scope Adapter OPT640

For E2000 Male connector

E2000 Male APC / Video Scope Adapter OPT641

For E2000 Male APC connector

E2000 Female / Video Scope Adapter OPT642

For E2000 Female connector

E2000 Female APC / Video Scope Adapter OPT643

For E2000 Female APC connector

1.6 mm Male / Video Scope Adapter OPT637

For 1.6 mm ferrule / terminus

2 mm Male / Video Scope Adapter OPT638

For 2.0 mm ferrule / terminus
