Overview

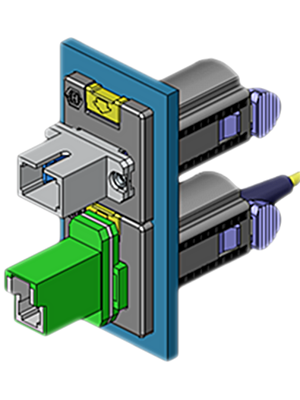

G2 Panel Mount Connector Interchangeable Optical Connector Series

  • Single mode, multimode or POF fiber types.
  • Ideal solution for OEM, test & development panel mount applications.
  • Huge range of interchangeable optical connector styles SC, FC, LC, ST, E2000, MU, LSA, HFBR, SMA, Toslink, bare POF, Mini Toslink, 2.5mm, Versatile Link, Redlink.
  • Users can change connector styles, swap out damaged adapters & clean the tip.
  • Manufacturers can streamline inventory, offer wider option range & reduce delivery time.
  • Standardize production & test with one connector style.
  • CWDM color coded channel / port identification.
  • Allows one-time tamper-proof configuration.
  • Distributors can configure current inventory to customer requirements.
  • Service swap-over of fiber modules with no tools.

Please enquire for volume pricing and configuration.

Part Number Details

Products
Part Number
Description
Suited for
Connector, G2, PC, 9/125/900 um SM Pigtail
Suited for
Connector, G2, APC, 9/125/900 um SM Pigtail
Suited for
Connector, G2, 50/125/900 um MM Pigtail
Suited for
Connector, G2, 62.5/125/900 um MM Pigtail
Suited for
Connector, G2, 1 mm POF Pigtail
Suited for
Not sure? Make a general enquiry.
