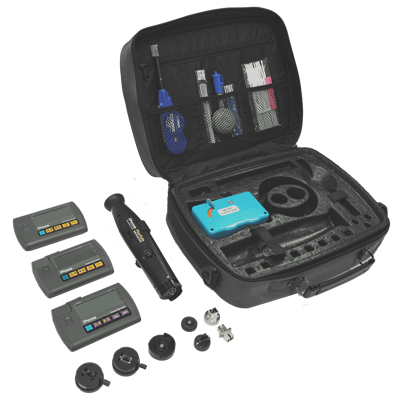

Clean Inspect Test Kit MPO SM MM Simple, KI-TK035

Kit, Complete, MPO/MTP SM & MM 9000, Ge (not shippable to Iran)

MPO kit with source, meter, scope & cleaners. 1310/1550 & 850/1300 nm, SM MM fiber.

A test inspect & cleaning kit, ideal for low to modest volume on MPO / MTP™, LC, SC and all fiber types. Inexpensive with good accuracy.

MPO test, inspection & cleaning applications

  • Optical loss on SM fiber at 1310 & 1550 nm, 40 dB range.
  • Optical loss on MM fiber at 850 & 1300 nm, 20 dB (@ 62.5um) range, EF compliant.
  • This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
  • Reporting software for cable loss (manual data entry).
  • Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 37 dB range.
  • Optical connector end-face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC, LC, MPO-PC & MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC/APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

A suitable MPO breakout cable is needed for this kit.
Alternative: Video microscope
Please enquire for 16/32 ribbon MPO

Alias: TK-035, KI035, KI-035, K1-035

In the Box

KI9822A

Optical Light Source KI9822A

  • Economical shirt-pocket size source
  • Laser source for SM testing
  • Low-skill TamperLock mode
More Info
KI9812A

Fiber Optic LED Test Source KI9812A

  • Economical shirt-pocket size source
  • LED source for MM, POF testing
  • EF compliant
More Info
KI9600XL-GE5

Optical Power Meter MPO Large Area KI 9600XL-Ge5

  • Simple shirt-pocket size power meter
  • Large area detector for ribbon fiber, MPO, POF testing
  • Ideal for transmission installers
More Info
KI6610

FiberSafe Fiber Connector Scope x200 KI6610

  • 200x microscope for inspection of SM, MM & MPO networks
  • Best quality, image & eye safety
  • Wide range of interchangeable adaptors
More Info
OPT076

LC / SC Hybrid Adapter OPT076

LC Simplex adaptor, metal body

More Info
OPT201

SC / XL Optical Power Meter Adapter, OPT201

SC adaptor

More Info
OPT224

1.25 mm Universal / XL Optical Power Meter Adapter OPT224

1.25 mm Universal adaptor. Also fits duplex LC

More Info
OPT227

MPO / XL Optical Power Meter Adapter OPT227

MTP™ / MPO 12 x n style adaptor with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.

More Info
OPT677

Fibersafe Scope Adapter / MPO 12 24 OPT677

MPO 12 x n style adaptor. Incorporates traversing knob

More Info
OPT678

Fibersafe Scope Adapter / MPO 12 24 APC OPT678

MPO 12 x n style APC adaptor. Incorporates traversing knob

More Info
OPT682

Fibersafe Scope Adapter / 1.25 mm Universal OPT682

Universal 1.25 mm PC adaptor, Simplex / Duplex and terminus for ruggedised connectors

More Info
OPT401

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors

More Info
OPT155

Carry Case & Accessories for Test Kits, Semi-Rigid OPT155

  • Highly cushioned & convenient carry case, durable custom moulded urethane foam, splash resistant cloth cover with zipper and separator, carry strap. Fits microscope, cleaning materials, three KI9000 instruments.
  • Semi-rigid case is both comfortable to use & avoids damaging other objects.
  • Layout help avoid losing items on-site.
  • Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains pack, 2 x mandrel wrap, instruments
More Info
TOOL CLEAN-05A

Fiber Optic Cleaner, MPO Stick-Type TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Sold in 10-stick pack)

More Info

Optional Accessories

KI6358

VFL Visual Fault Locator Pen KI6358

OPT673

Fibersafe Scope Adapter / MT Ferrule OPT673

Incorporates traversing knob

OPT661A

Fibersafe Scope Adapter / LC-APC OPT661A

LC APC

OPT662A

Fibersafe Scope Adapter / SC-APC OPT662A

SC APC

OPT687A

Fibersafe Scope Adapter / MMC Connector or MT-APC Ferrule OPT687A

Incorporates traversing knob

OPT690

x10 Eyepiece for Microscope OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

OPT684A

Video Camera for Fibersafe Microscope OPT684A

TOOL CLEAN-03

Fiber Optic Cleaner, 2.5 mm Stick-Type TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Fiber Optic Cleaner, 1.25 mm Stick-type TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

TOOL CLEAN-05A

Fiber Optic Cleaner, MPO Stick-Type TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

TOOL CLEAN-09A

Fiber Optic Tip Cleaner, Cassette Reel Type TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-09B

Connector Cleaner Replacement Reel TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

OPT401

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

OPT712

MPO to LC Cable Breakout Kit, MM OM3

MPO - LC OM3 breakout cable kit, 12 fiber, useful for general testing applications.

OPT720-BKO-LC

MPO (no pin) to LC Breakout Test Cable, 12 fiber, SM

MPO - LC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-BKO-LCAPC

MPO (no pin) to LC-APC Breakout Test Cable, 12 fiber, SM

MPO - LC/APC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-BKO-SC

MPO (no pin) to SC Breakout Test Cable, 12 fiber, SM

MPO - SC SM Breakout Cable, 12 fiber, 2m, Female

OPT720-BKO-SCAPC

MPO (no pin) to SC-APC Breakout Test Cable, 12 fiber, SM

MPO - SC/APC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-PBKO-LCAPC

MPO to LC-APC Breakout Test Cable, 12 fiber, SM

MPO - LC/APC SM Breakout Cable, 12 fiber, 2 m, Male

OPT720-PBKO-SC

MPO to SC Breakout Test Cable, 12 fiber, SM

MPO - SC SM Breakout Cable, 12 fiber, 2 m, Male

OPT720-PBKO-SCAPC

MPO to SC-APC Breakout Test Cable, 12 fiber, SM

MPO - SC/APC SM Breakout Cable, 12 fiber, 2 m, Male

OPT800

MPO-12xn (center key) Through Adapter Option

Option, MPO-12xn Through Adapter, useful accessory for MPO testing

OPT046

SC / SC Through Adapter OPT046

SC-SC, Tough metal body, precision ceramic sleeve

OPT073

LC Blue Thru Connector Ceramic Sleeve

LC PC SM Adapter Single Mode Simplex, Blue

OPT074

LC Green Thru Connector, Ceramic Sleeve

LC APC SM Adapter Single Mode Simplex, Green

OPT075

LC Beige Thru Connector, Ceramic Sleeve

LC MM Adapter Multimode Simplex, Beige

OPT233

MMC or MT Ferrule / XL Optical Power Meter Adapter OPT233

MMC Connector or MT Ferrule
