Test Kit SM MM Autotest KI-TK076

Kit, Small, SM & MM 2000

Source & Autotest meter kit. 1310/1550 nm & 850/1300 nm, SM MM fiber.

A fiber testing kit with an optical power meter and light source, effective for low to medium test volume on single mode & multimode systems.

Typical testing applications

  • Optical power at 25 calibrated wavelengths, -60 to +15 dBm range.
  • Optical loss on SM fiber 1310 / 1550 nm, 60 dB range.
  • Optical loss on MM fiber 850 / 1300 nm, 40 dB (@ 62.5um) range, EF compliant.
  • Loss testing automation & reporting with AutoTest and KITS™ software.
  • Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 50 dB range.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts PC polish.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.

We gladly adjust kits to meet your exact needs.

Alias: TK-076, KI076, KI-076, K1-076

In the Box

KI2824

Optical Light Source LED & Laser Quad KI 2824

  • Versatile productivity source
  • Quad source for SM & MM testing
  • Encircled Flux compliant
More Info
KI2600-INGAAS

Handheld Optical Power Meter KI 2600-InGaAs

  • Productivity power meter
  • InGaAs detector for SM & MM testing
  • Ideal for cable installers
More Info
OPT149

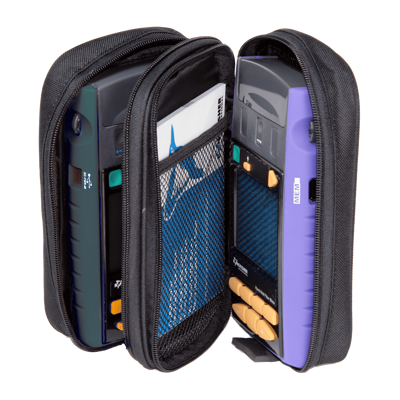

Padded Canvas Carry Bag OPT149

  • Pocket padded pouch, splash resistant cloth outer covering with zipper, carry strap.
  • Accommodates two instruments.
  • Space for additional: batteries, connector adaptors, additional documentation.
More Info

Optional Accessories

OPT076

LC / SC Hybrid Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve. Also fits F3000 connector.

OPT051

FC / SC Hybrid Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

OPT040

ST / SC Hybrid Adapter OPT040

ST-SC. Tough metal body, precision ceramic sleeve

OPT081

2.5 mm Universal / SC Hybrid Adapter OPT081

Universal 2.5 mm-SC, also compatible with duplex SC. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT085

1.25 mm Universal / SC Hybrid Adapter OPT085

Universal 1.25 mm-SC. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT080

MU /SC Hybrid Adapter OPT080

MU-SC

OPT072

LC or F3000 / SC Hybrid Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

OPT060

E2000 / SC Hybrid Adapter OPT060

E2000-SC, ceramic sleeve

OPT060G

E2000 / SC Hybrid Adapter Green OPT060G

E2000-SC, green, ceramic sleeve

OPT071

LSA-DIN47256 AVIM /SC Hybrid Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

TOOL CLEAN-03

Fiber Optic Cleaner, 2.5 mm Stick-Type TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Fiber Optic Cleaner, 1.25 mm Stick-type TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

TOOL CLEAN-09A

Fiber Optic Tip Cleaner, Cassette Reel Type TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-09B

Connector Cleaner Replacement Reel TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

OPT730-SCP-SCP

SC to SC Fiber Test Cable, Simplex SMF 2m

SC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT730-SCP-SCA

SC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT730-SCA-SCA

SC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-SCP

LC to SC Fiber Test Cable, Simplex SMF 2m

LC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-SCA

LC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-SCP

LC-APC to SC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-SCA

LC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-LCP

LC to LC Fiber Test Lead, Simplex SMF 2m

LC - LC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-LCA

LC-APC to LC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - LC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT706

SC to SC-APC Fiber Test Cable, Simplex 62.5um 2m

SC - SC/APC Multimode Fiber Patch Cord, 2m, 62.5um Simplex

OPT707

SC to SC Fiber Test Cable, Simplex 62.5um MMF 2m

SC - SC Multimode Fiber Patch Cord, 2m, 62.5um Simplex

OPT740-SCP-SCP

SC to SC Fiber Test Cable, Simplex 50um MMF 2m

SC - SC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT740-SCP-SCA

SC to SC-APC Fiber Test Cable, Simplex 50um MMF 2m

SC - SC/APC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT741-LCP-SCP

LC to SC Fiber Test Cable, Simplex 50um MM 2m

LC - SC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT046

SC / SC Through Adapter OPT046

SC-SC, Tough metal body, precision ceramic sleeve

OPT073

LC Blue Thru Connector Ceramic Sleeve

LC PC SM Adapter Single Mode Simplex, Blue

OPT074

LC Green Thru Connector, Ceramic Sleeve

LC APC SM Adapter Single Mode Simplex, Green

OPT075

LC Beige Thru Connector, Ceramic Sleeve

LC MM Adapter Multimode Simplex, Beige
