Test Kit SM Simple KI-TK056

Kit, Simple, SM 9000

Single mode source & power meter kit, 1310/1550 nm, SM fiber.

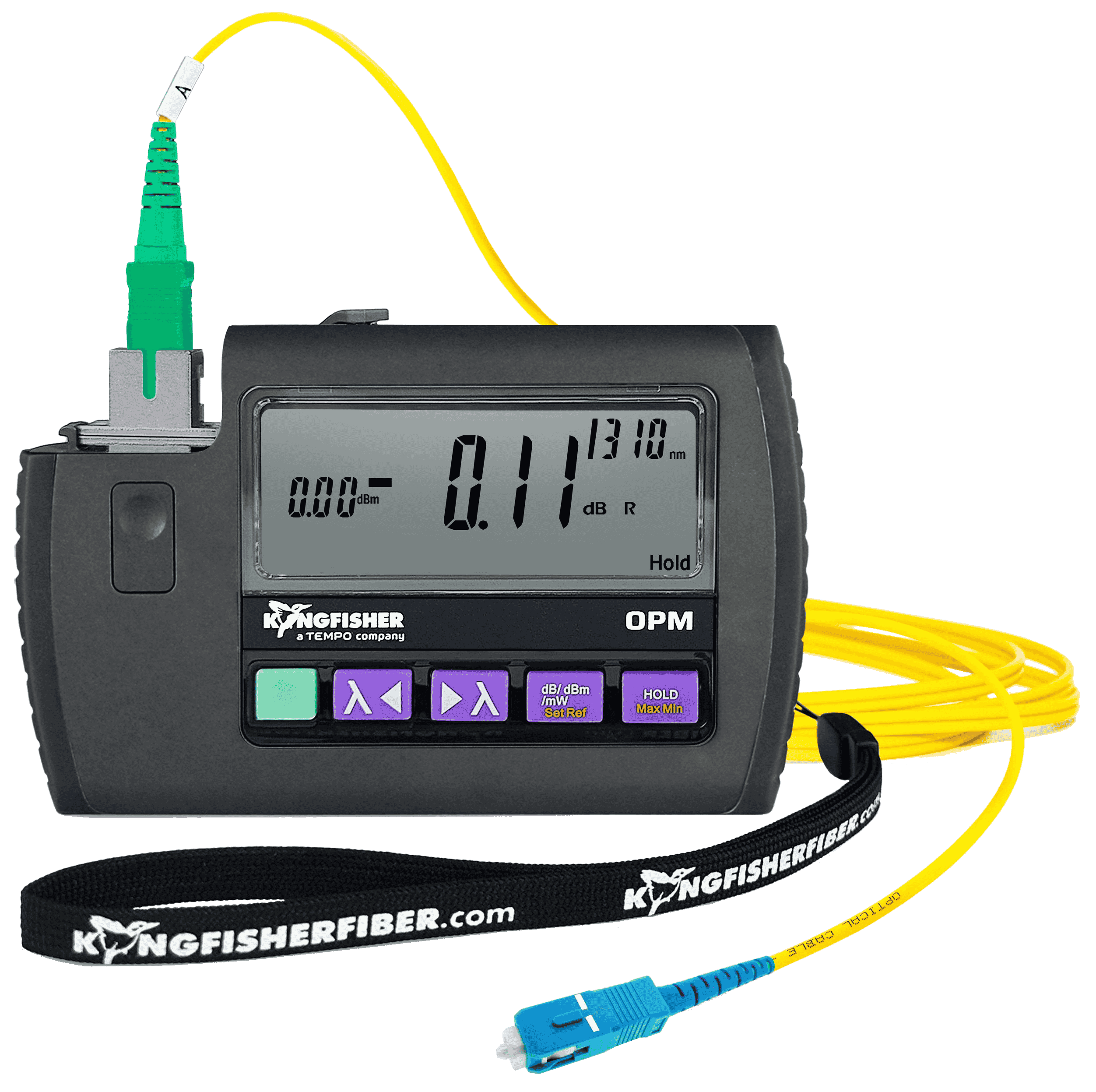

A simple fiber testing kit, excellent for low to modest test volume on single mode systems. An optical power meter with laser source kit.

Typical Test Applications

  • Optical power at 8 calibrated λ, -60 to +5 dBm range.
  • Optical loss on SM fiber at 1310/1550 nm, 60 dB range.
  • Reporting software for cable loss, manual data entry.
  • Optical continuity / tone source & meter, 12 fiber Multi-Fiber ID, 40 dB range.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC interchangeable connector adapters.
Meter accepts PC & APC polish. Source accepts PC polish.
Meter 2 x AAA alkaline. Run time >300 hours.
Source 2 x AAA alkaline. Run time >40 hours.

We gladly adjust kits to meet your exact needs.

Alias: TK-056, KI056, KI-056, K1-056

In the Box

Canvas Bag for KI9000 Series Instruments OPT156

  • Pocket padded pouch, splash resistant cloth outer covering with zipper, carry strap.
  • Fits any two KI9000 style instruments.
  • Some space for additional (not supplied): batteries, connector adaptors, additional documentation.
More Info

Optional Accessories

LC / SC Hybrid Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve. Also fits F3000 connector.

FC / SC Hybrid Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

2.5 mm Universal / SC Hybrid Adapter OPT081

Universal 2.5 mm-SC, also compatible with duplex SC. Tough metal body, precision ceramic sleeve. Please observe application advice.

1.25 mm Universal / SC Hybrid Adapter OPT085

Universal 1.25 mm-SC. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Tough metal body, precision ceramic sleeve. Please observe application advice.

LC or F3000 / SC Hybrid Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

E2000 / SC Hybrid Adapter OPT060

E2000-SC, ceramic sleeve

E2000 / SC Hybrid Adapter Green OPT060G

E2000-SC, green, ceramic sleeve

LSA-DIN47256 AVIM /SC Hybrid Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

Fiber Optic Cleaner, 2.5 mm Stick-Type TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Fiber Optic Cleaner, 1.25 mm Stick-type TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Fiber Optic Tip Cleaner, Cassette Reel Type TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Connector Cleaner Replacement Reel TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

SC to SC Fiber Test Cable, Simplex SMF 2m

SC - SC Single Mode Fiber Patch Cord, 2m, Simplex

SC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

LC to SC Fiber Test Cable, Simplex SMF 2m

LC - SC Single Mode Fiber Patch Cord, 2m, Simplex

SC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

LC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

LC-APC to SC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC Single Mode Fiber Patch Cord, 2m, Simplex

LC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

LC to LC Fiber Test Lead, Simplex SMF 2m

LC - LC Single Mode Fiber Patch Cord, 2m, Simplex

LC-APC to LC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - LC/APC Single Mode Fiber Patch Cord, 2m, Simplex

SC / SC Through Adapter OPT046

SC-SC, Tough metal body, precision ceramic sleeve

LC Blue Thru Connector Ceramic Sleeve

LC PC SM Adapter Single Mode Simplex, Blue

LC Green Thru Connector, Ceramic Sleeve

LC APC SM Adapter Single Mode Simplex, Green
