Overview

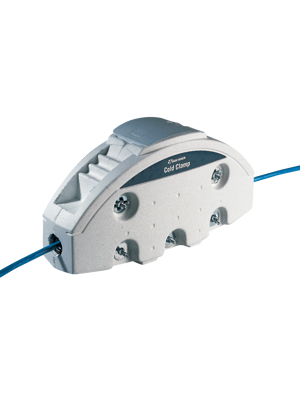

The ColdClamp-1 starter kit provides all the equipment typically required to get started with Cold Clamp:

It contains:

  • ColdClamp-2 (qty 2): 10 Cold Clamps
  • ColdClamp-3: Work Kit
  • ColdClamp-4: 10-liter Dewar

Additionally, some new users may also want to order a Dewar flask such as ColdClamp-5

Specifications

COLDCLAMP-1 specifications
Country of Origin Australia

Shipping Weight 10500 g

General Cold Clamp specifications
Maximum Cable Diameter 38 mm

Known Applicable Cable types Fiber optic cable, jelly filled with acrylate coated fiber, including armoured types.

Typical loss created by Cold Clamp 0.21 dB at 1300 & 1550 nm

Typical usage of liquid nitrogen 300 ml (15mm non-metallic cable)

Liquid nitrogen boiling Point 196 °C
